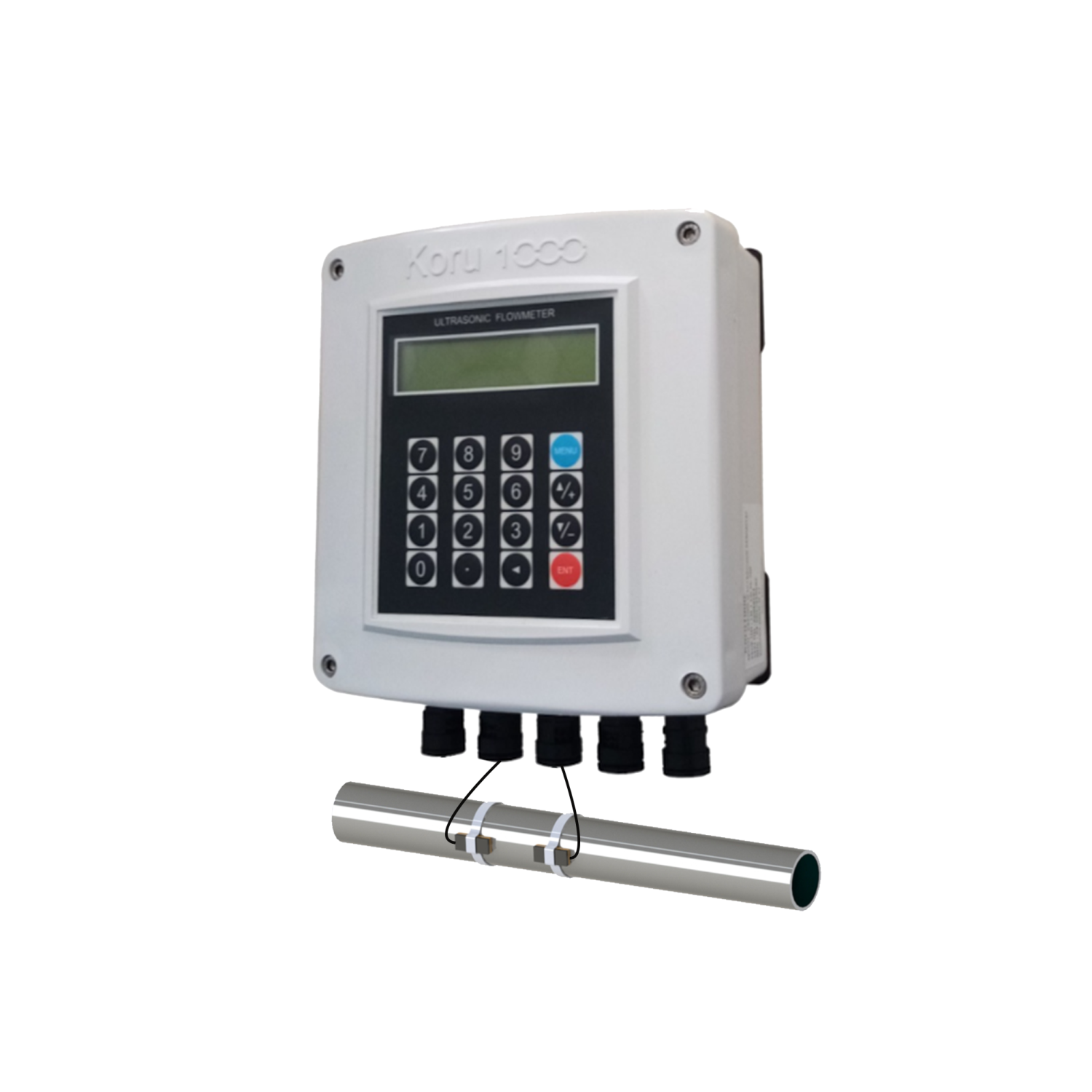

Ultrasonic Flowmeter UF100

Ultrasonic Flowmeter UF100
    Convertor Principle Transit-time ultrasonic flowmeter
    Accuracy Flow: over 1%-2%(battery-powered supply over ±2% )，Heat: over ±2%，Repeatability: over 0.2%
    Display 2×20 character LCD with backlight, support the language of Chinese, English and Italy Convertor dimension:170*180*56cm
    Operation Support 16 key light touch keyboard and the Simulation keyboard software
    Signal Output 1 way 4~ 20mA output, electric resistance 0~ 1K，accuracy0. 1%
    1 way OCT pulse output( Pulse width 6 ~ 1 0 0 0 ms，default is 2 0 0 ms)
    1 way Relay output
    Signal Input 3 way 4~ 20mA input, accuracy 0. 1%，acquisition signal such as temperature, press and liquid level
    Connect the temperature transducer Pt100, can finish the heat/energy measurement
    Data interface Insulate RS485 serial interface, upgrade the flow meter software by computer, support the MODBUS, METER-BUS etc.
    Other Function Automatically remember the previous flow/energy data of 512 days,  128 months and 10 years
    Automatically remember the previous flow/energy data of 512 days working condition and check it
    Automatically remember the previous 32 times power on/off time and flow rate
    Special Cable Twisted-pair cable, generally, the length under 50 meters; Select the RS485 communication. The transmission distance can over 1000m.
    Pipe Installation Condition Pipe Material Steel, Stainless steel, Cast iron, Copper, Cement pipe, PVC, Aluminum, Glass steel product, liner is allowed.
    Pipe Diameter 32mm---6000mm
    Straight length pipe Transducer installation should be satisfied: upstream10D, downstream 5D, 30D from the pump.
    Measuring Medium Type of Liquid Water (hot water, chilled water, city water, sea water, waste water, etc.);  Sewage with small particle content; Oil (crude oil, lubricating oil, diesel oil, fuel oil, etc.);  Chemicals (alcohol, acids, etc.); Plant effluent; Beverage, liquid food; Ultra-pure liquids; Solvents and other liquids
    Temperature Standard Transducer: -30--90℃; High-temperature transducer: -40--160℃
    Turbidity No more than 10000ppm and less bubble
    Flow rate 0--±12 m/s
    Working Environment Temperature Main Unit: -20--60℃
    Flow transducer: -40--160℃;
    Temperature transducer: according to the customer’s demands.
    Humidity Main Unit: 85% RH; Flow Transducer: Ip67
    Power Supply DC  24V or AC  85-264V
    Power Consumption 1.5W
